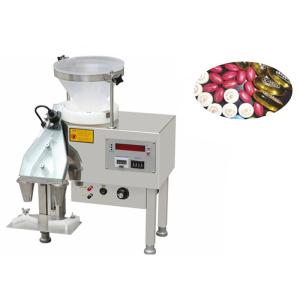

Table Top Machine Electronic Tablet Capsule Counting Machine

Feature:

• The number of particles can be set arbitrarily from 0-9999.
• Vibrating feeding and rotary cutting design, the feeding speed can be adjusted infinitely for manual bottle placement.
• The inside of the machine is equipped with a dust suction channel, which can be connected to a vacuum cleaner to absorb dust.
• Photoelectric sensing technology, the particle precision is over 99.7%.
• No need to change the mold, the tablets and capsules can be adjusted at will.
• GMP compliant.

Operating Steps:

1. Check the disc to make sure there are no tablets or other debris.
2. Pour the tablets into the disc, make sure not too full.
3. The feed opening set into a plastic bag.
4. Adjust the height of the lift plate.
5. Turn on the power; check whether display of detection sensitivity (sensitivity adjustment refer to Troubleshooting).
6. Set number, such as inventory is set in 1000 or more.
7. Return to zero.
8. Turn vibration switch, adjust vibration, note whether tablets on the disc are one by one ordered, and not overlapped.
9. When the tablet counting is finished, it will automatically count the other side.
10. Please note that whether sensitivity indicator flashes normally in operation, and do sampling often; if abnormal should immediately stop the machine.
11. When operating please make sure not so many tablets are poured into the disc, so that they are not overlapped and wrong counted.
12. 1Avoid placing the machine near the windows, outdoors, or in the sun.

Transports Storage and Warranty:

1. Transports

During transport machines should not in severe vibration, not stacking.

2. Storage

After packing, should be placed indoor or shed in non-corrosive and dry gases, cannot in open storage, stacking are not allowed.

3. Warranty

(1) From the date of purchase, the company is responsible for one-year warranty. During the warranty period the user are not be allowed to disassemble, To the damage or loss caused by Modification, the Company shall not be responsible.

(2) During the warranty period repair caused by improper use or man-made damage, the company is appropriate to charge parts costs.

(3) During the warranty period, if there is any product quality problems, the user can send the product together with the warranty card to the designated service location of the repair. Damage caused by transport is not covered by the warranty.

Parameter:

Model	YL-2	YL-4	YL-2A
Dimension	81x72x84cm	98x79x93cm	44x37x58cm
Voltage	110-220V 50HZ-60HZ	110-220V 50HZ-60HZ	110-220V 50HZ-60HZ
Weight	50kg	75kg	20kg
Power	350W	500W	300W
Output	1000-2500	2000-4500	500-1500

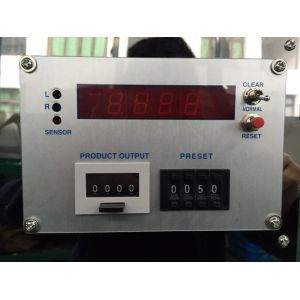

Detailed image

Urban Packline Machinery Co.,Ltd is the world leader of blister packing machine,capsule filling machine etc manufacturer.We have years of production history of pharmaceutical packing and related equipment, and have a number of related patented technologies.

Urban focuses on research and development,and provide blister packing machine,capsule filling machine,plastic ampoule filling and sealing machine,filling and packaging production line etc.100% safety guaranteed and fully meets cGMP standards.

In order to meet the demand of small scale production,Urban provides the manual and semi-automatic lab equipments.

Urban is committed to the cause of human health and assisting in the development of pharmaceutical industry and customer.Urban team provides whole set of production and packaging scheme of different pharmaceuticals and health care products,for different customers.
